| Model | Voltage | Capacity | Energy | Dimensions | UL | Application | |
|---|---|---|---|---|---|---|---|

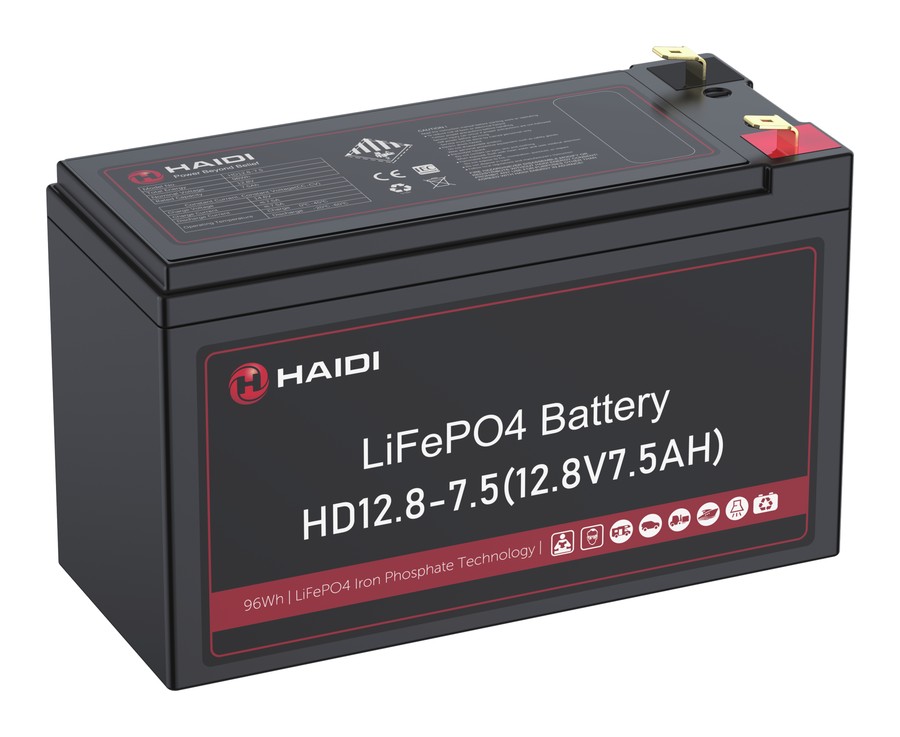

| HD12.8-7.5 | 12.8V | 7.5Ah | 96Wh | 151 × 65 × 94 mm | UL1642 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings | |

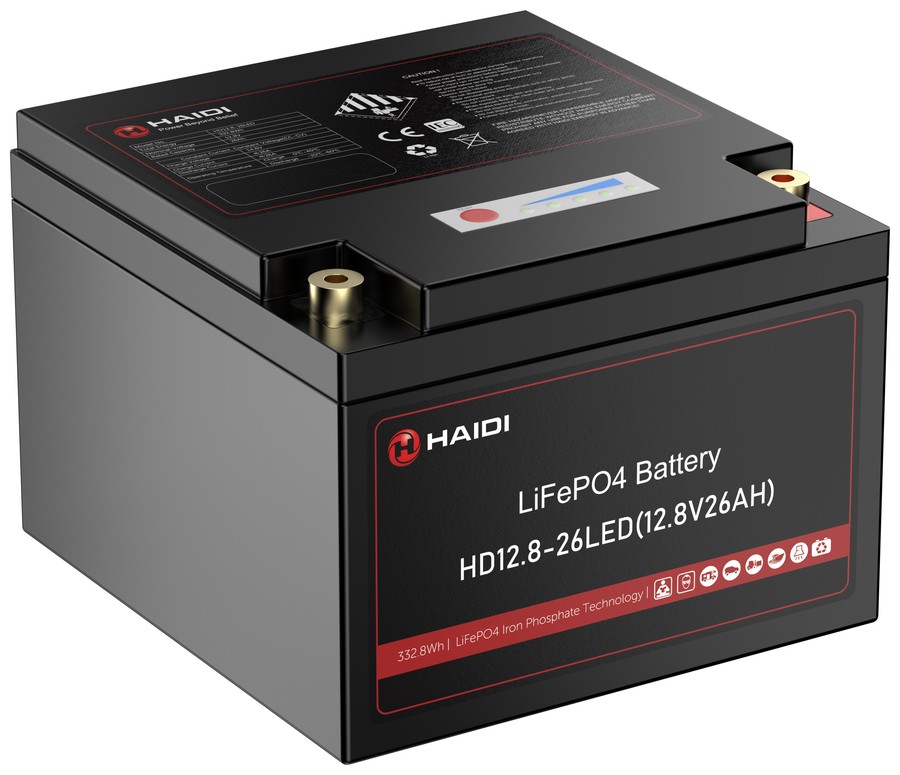

| HD12.8-26LED | 12.8V | 26Ah | 332.8Wh | 166 × 175 × 125 mm | UL1642 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings | |

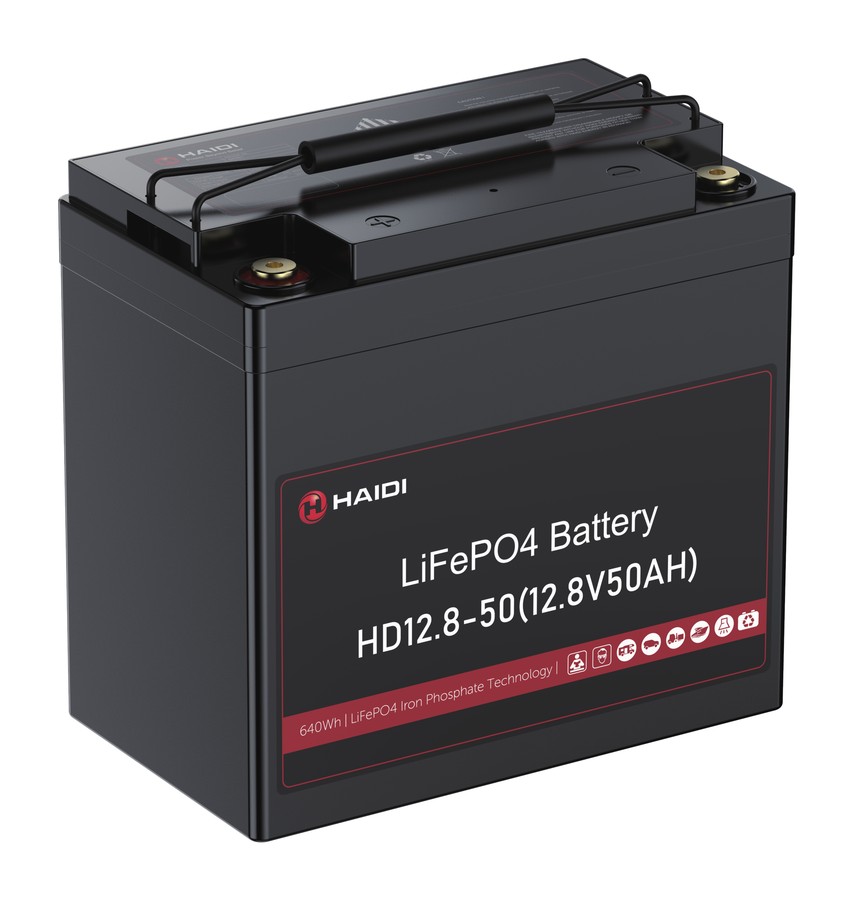

| HD12.8-50 | 12.8V | 50Ah | 640Wh | 228 × 138 × 214 mm | UL1642 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings | |

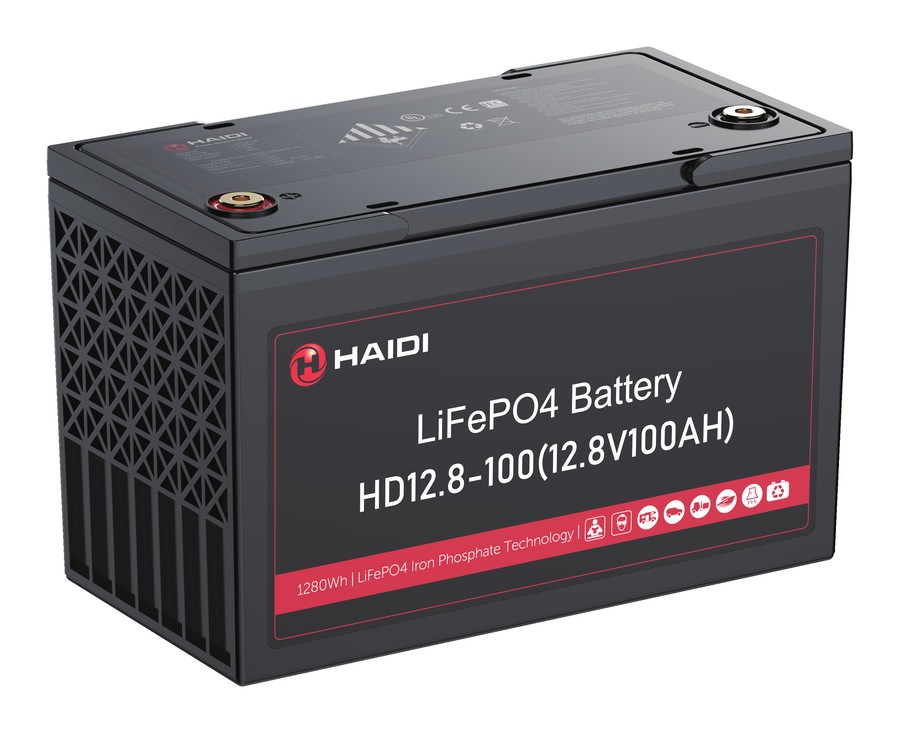

| HD12.8-100 | 12.8V | 100Ah | 1,280Wh | 330 × 173 × 212 mm | UL2054 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings, Autonomously Guided Vehicles (AGVs) | |

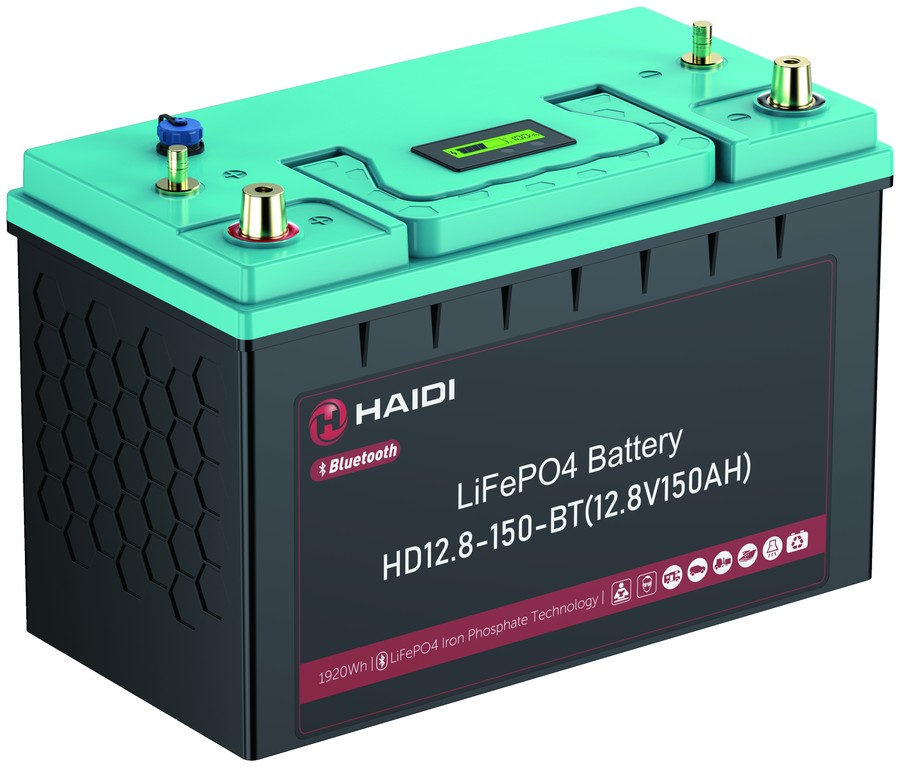

| HD12.8-150-BT | 12.8V | 150Ah | 1,920Wh | 330 × 173 × 212 mm | UL1642 | RV & Camping, Marine, Solar Energy Storage System, Off-Grid Backup Power | |

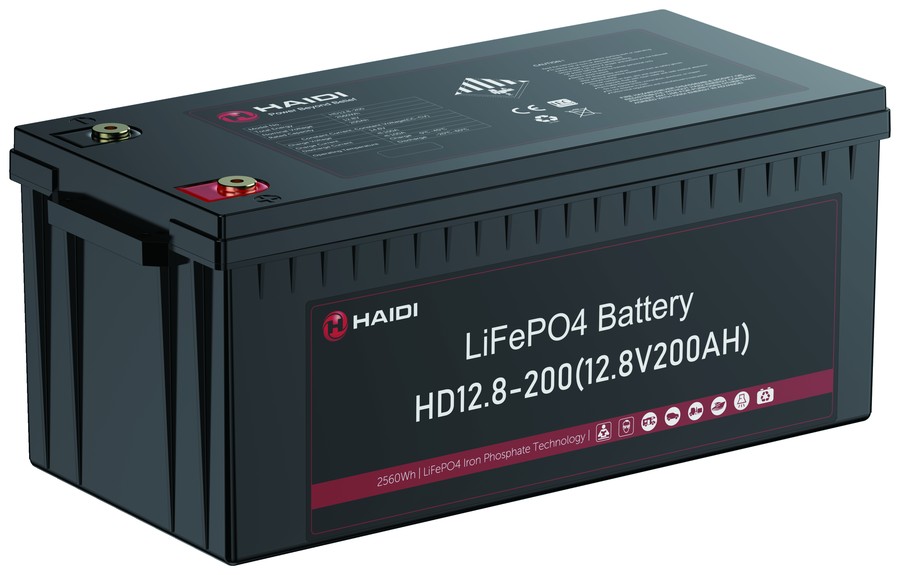

| HD12.8-200 | 12.8V | 200Ah | 2,560Wh | 522 × 240 × 224 mm | UL1642 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings | |

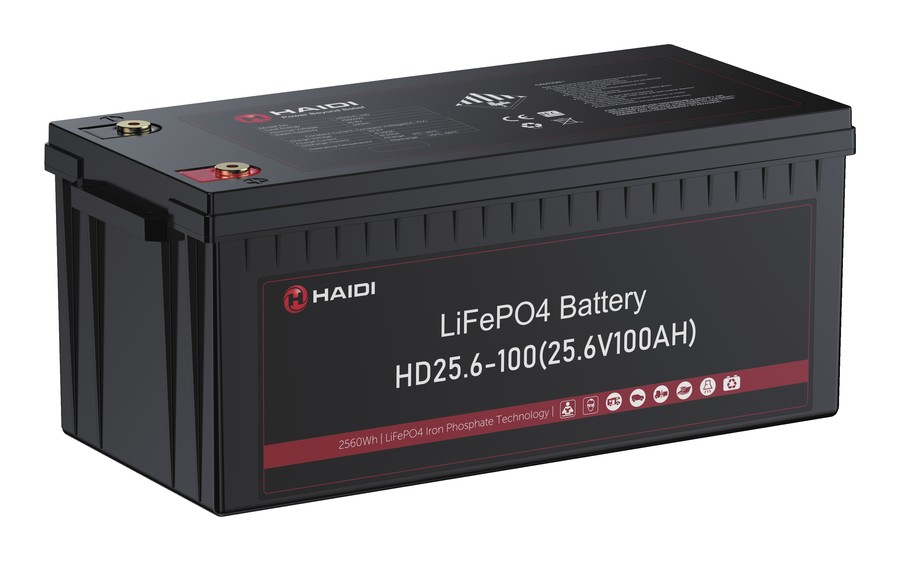

| HD25.6-100 | 25.6V | 100Ah | 2,560Wh | 522 × 240 × 224 mm | UL1642 | Data Center UPS, Telecom Backup Power, Military Power Supply, Solar Energy Storage System, Solar Street LED Lightings | |
| HD25.6-200 | 25.6V | 200Ah | 5,120Wh | 600 × 200 × 395 mm | UL1973 | Marine, RV & Camping, Solar Energy Storage System, Off-Grid Backup Power | |
| HD51.2-100 | 51.2V | 100Ah | 5,120Wh | 600 × 200 × 395 mm | UL1973 | Marine, RV & Camping, Solar Energy Storage System, Off-Grid Backup Power |
| Part Number | Chemistry | Nominal Voltage | Rated Capacity | Internal Resistance | Discharge Rate |
|---|---|---|---|---|---|
| HDPF18650-1100mAh-3.2V | LFP | 3.2V | 1100mAh | ≤15mΩ | 30C |
| HDPF26650-2500mAh-3.2V | LFP | 3.2V | 2500mAh | ≤15mΩ | 20C |
| HDCF26700-5000mAh-3.2V | LFP | 3.2V | 5000mAh | ≤25mΩ | 3C |
| HDCF32140-15000mAh-3.2V | LFP | 3.2V | 15000mAh | ≤3mΩ | 2C |
| HDCNR18650-2000mAh-3.7V | NMC | 3.7V | 2000mAh | ≤15mΩ | 5C |
| HDCNR18650-3000mAh-3.7V | NMC | 3.7V | 3000mAh | ≤35mΩ | 3C |
Reach out to sales@haidiusa.com for real-time availability across our full local inventory.
